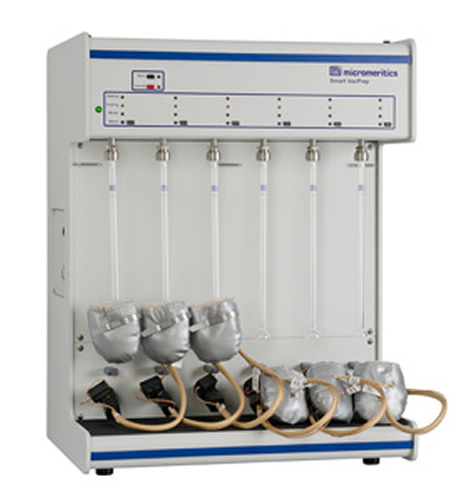

Smart VacPrep
Smart VacPrep is an advanced six-port system that utilizes vacuum to prepare samples by heating and evacuation.
The Smart VacPrep is an advanced six-port system that utilizes vacuum to prepare samples by heating and evacuation. Each of the ports may be operated independently. Samples may be added or removed from degas ports without disturbing the treatment of other samples undergoing preparation. Degassing automatically terminates when the samples have completed all programmed steps.
Specifications
Capacity:Six ports
Degas Method:Heat and vacuum
Vacuum Control:Servo-controlled rates to minimize or eliminate sample elutriation
Evacuation Rate:Selectable evacuation rate from 1.0 to 50.0 mmHg/s
Heating of Samples:加热mantles
Temperature Range:40 to 450 ºC in one degree increments
Temperature Control:One ramp during evacuation phase, five additional ramps during subsequent phases
Temperature Accuracy:Deviation less than ±10 ºC at the sensing thermocouple embedded in the heating mantle
Heating Ramp Rate:Selectable from 0.1 ºC per minute to 10 ºC per minute
Hold Time:Zero to 999 minutes in one-minute increments
Backfill Options:Automatic backfill
Dimensions:Height 69 cm (27 in.), Width 53 cm (21 in.), Depth 43 cm (17 in.)
Weight:70 lbs (32 kg)
